Direct Drive Smart Slim NC Rotary table
RDS-200,T
Slim body provides full use of machining area with various features of DD motor including high speed rotation.
This is best and smartest model for mass-production of automobile and computer parts on small machining centers.
Features
- Maximum speed 300min-1

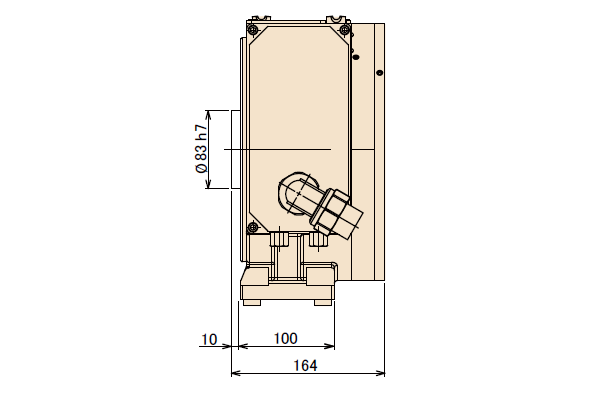

- Thinness 164mm, ultra slim and smart design
- Compact Rotary Joint is available
Application
- Mass produced small parts machining
- For Compact machining Center
Specifications
| Specifications | Unit | RDS-200 |
|---|---|---|

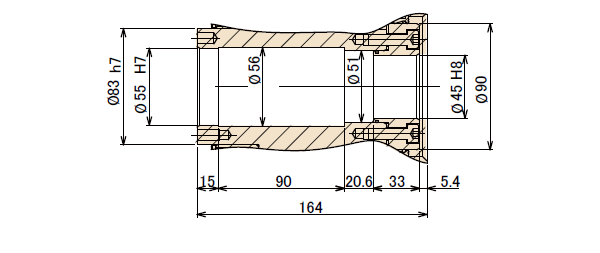

| Spindle diameter | mm | ø83 |

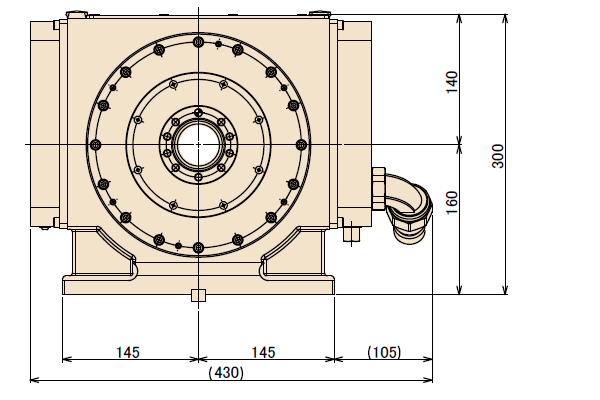

| Center height | mm | 160 |

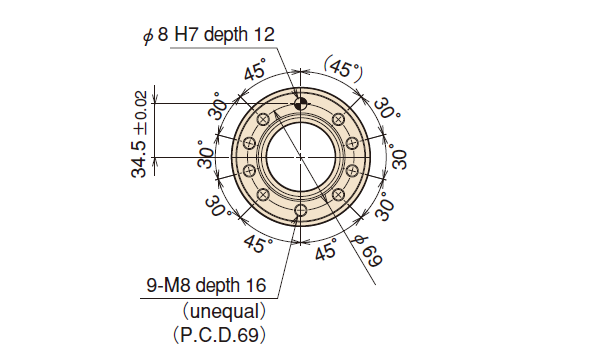

| Center bore | ||
| ・Nose diameter | mm | ø55H7 |
| ・Through-bore | mm | ø45 |
| Servo motors | Tsudakoma Developed | |
| Net weight | kg | 65 |
| Speed reduction ratio | 1/1 | |
| Table max. rpm | min-1 | 300 |
| Indexing accuracy (the sum) |
arc sec | 20* |
| Clamp system | Pneumatic | |
| Clamp torque/pneumatic pressure 0.49MPa | N・m | 600 |
| Allowable work weight | kg | 100 |
*Pitch error correction activated.
