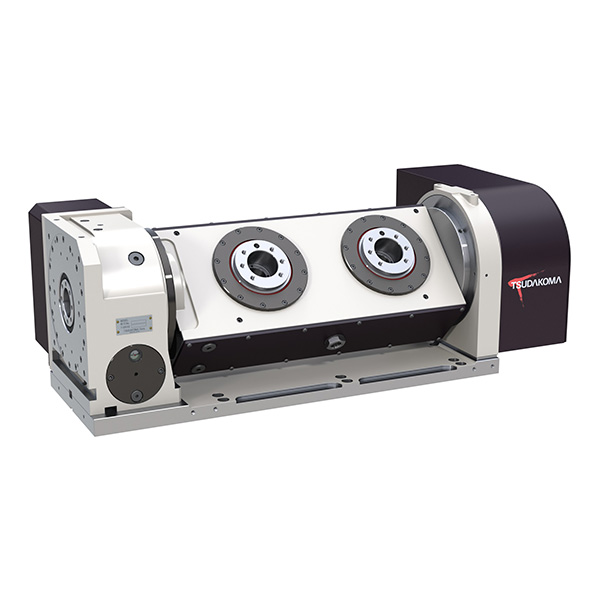

NC Tilting Rotary table
TWM-160,PS
New model of multi-spindle type table.
Productivity improvement of small parts machining.
Achieve automation by using our optional compact rotary joint.
Center distance is available in two patterns, 250mm and 320mm.
Features
- Multi spindle type model with 2 spindles
- Clamp torque: 6 times higher than previous model (rotary axis)
- Max table speed (rpm): 1.6 times up (rotary axis) & 1.5 times up (tilt axis)
- Center distance is available in two patterns, 250mm and 320mm. Display model:250mm
Application
- For mass production machining
Specifications
| Specifications | Unit | TWM-160,PS | |
|---|---|---|---|
| Rotary axis | Tilt Axis | ||
| Table max. rpm | min-1 | 50 | 33.3 |
| Speed reduction ratio | 1/60 | 1/90 | |
| Clamp torque (Supplied pressure Pneumatic 0.49MPa) | Nm | 500 | 1000 |
| Allowable work weight | kg/axis | 40 | |
| Net Weight | kg | 240 | |
| Tilt range | ° | -30° ～ +110° | |
| Center distance | mm | 250 | |
