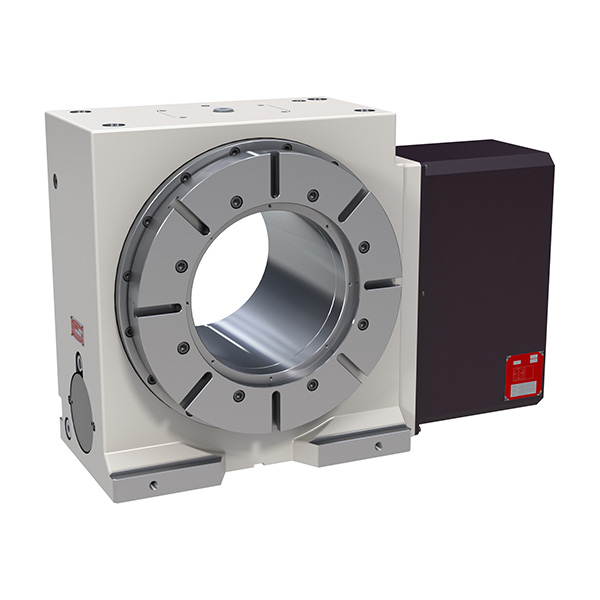

NC Rotary table
RCB-450R
High rigidity bearing in main spindle. Ideal for heavy cutting.
Machining close to the face plate is possible by putting the workpiece through the extra large center bore.
Features
- High rigidity model with special bearing on main spindle
- Large diameter through hole type, machining close to the face plate is possible.
Application
- Extra hard material tools
- Aircraft
- Heavy cutting for cutting resistant material
Specifications
Specification | Unit | RCB-450R |
---|---|---|

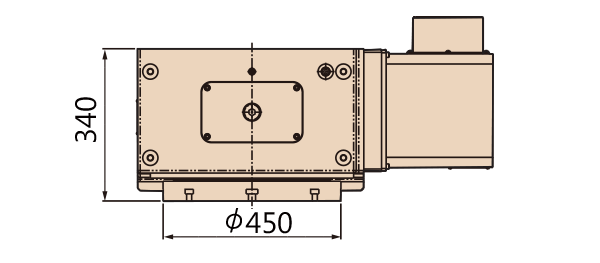

Table diameter | mm | ø450 |

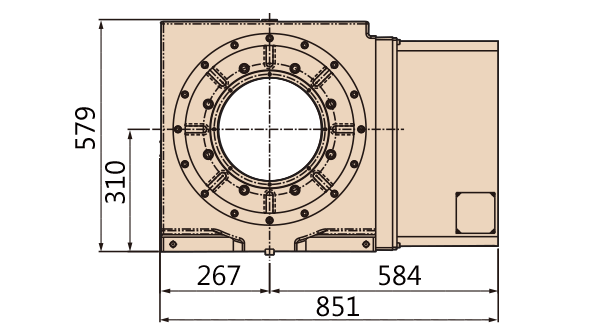

Center height | mm | 310 |

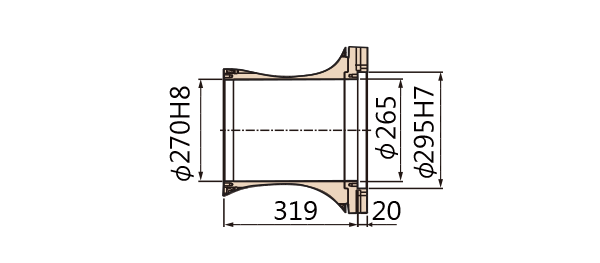

Center bore | ||
・Nose diameter | mm | ø295H7 |
・Through-bore | mm | ø265 |
Table max. rpm | min-1 | 22.2 |
Speed reduction ratio | 1/90 | |
Clamp torque Supplied pressure(Hydaaulic 3.5MPa) | Nm | 4700 |
Allowable work weight ():with tailstock | kg | 700 (1400) |
Net weight | kg | 520 |
