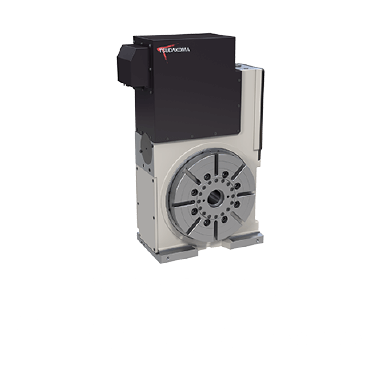

旋削と切削をワンストップで加工可能にした高速旋回NC円テーブル。
回転軸最高回転数3,000min-1。

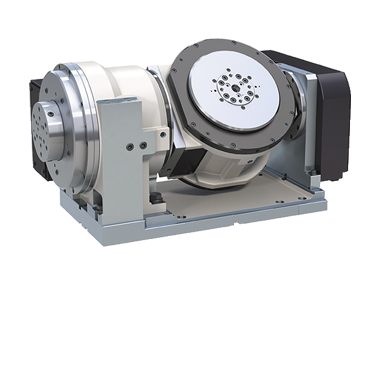

Direct Drive
旋削と切削をワンストップで加工可能にした高速旋回NC円テーブル。
回転軸最高回転数3,000min-1。
High-speed turning NC rotary table enables one-stop machining of turning and milling operations.
Maximum rotary axis speed 3,000min-1.
实现一站式车削和铣削加工的高速旋转NC转台。旋转轴最高转速3,000min-1。
参考出品

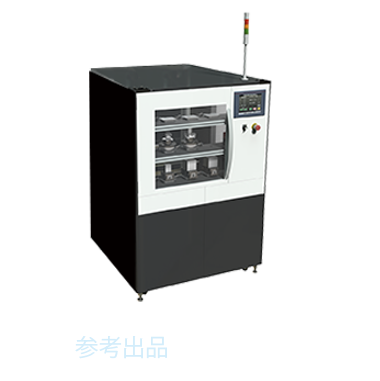

当社NC傾斜円テーブル+5軸マシンバイス+ワーク交換装置のトリオで機械の無人稼働時間を大幅に拡大。
自社開発のパレット交換装置を搭載、ワーク交換ごとのハンド交換は不要。
ワークは9個ストック可能。
対象ワークと加工プログラムを紐づけ可能。
Trio of NC Tilting Rotary Table, 5-axis Machine Vise, and Automatic Work Changer—maximizing unmanned operation time.
Mounted with pallet exchange device-no need to change hands for each workpiece.
Stores up to 9 workpieces.
Links each workpiece with its machining program.

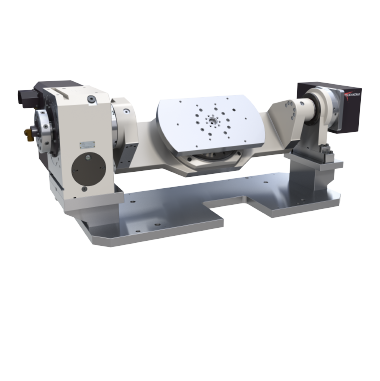

Mega-workpiece Milling Model
最大ワーク旋回径はφ800㎜。
当社の持つ3つの駆動要素(ウォームドライブ・ボールドライブ・ダイレクトドライブ)から、
ワークや加工条件に見合う駆動要素を選択し、ブロックビルド感覚で最適なアプリケーションを構築可能。
ロータリージョイント(オプション)で自動化対応。
既存設備への搭載もでき、遊休機の活用が可能。
NC Tilting Rotary Table with a maximum workpiece swing diameter of 800 mm.
TSUDAKOMA's three drive mechanism—Worm Drive, Balldrive®, and Direct Drive.
Select the best fit for your workpiece and machining conditions and create the ideal application with a block-building approach.
Automation with rotary joint (Option)
Can be installed on existing equipment, enabling utilization of idle machines.

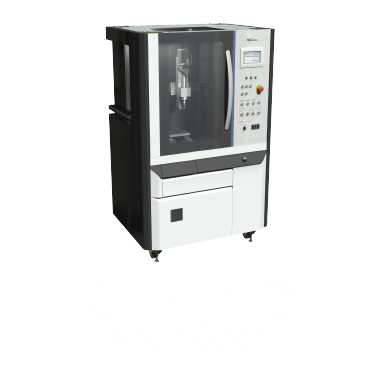

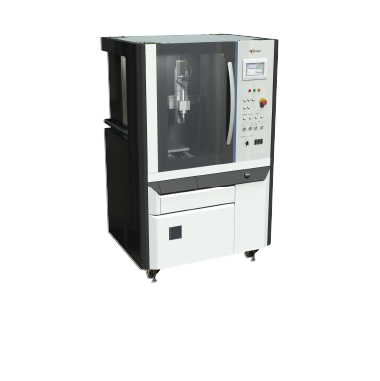

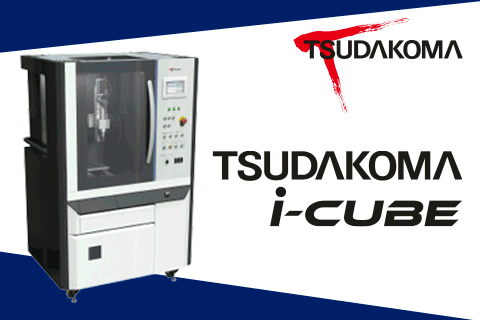

小型加工機
機械加工をもっと身近に、もっと手軽に。
100V電源で即運転可能。試作品加工や3Dプリンタ造形後加工に。
初心者でも安心して使えるらくらく操作。高速回転可能なため、幅広い用途に対応する小型加工機です。
BallDrive ®

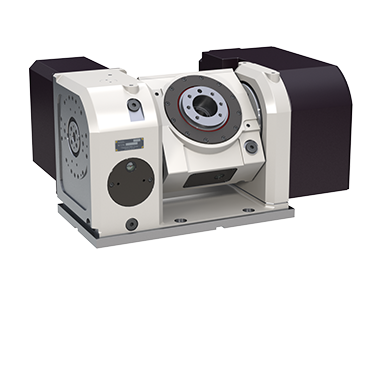

BallDrive systemを採用した傾斜NC円テーブル。自動化・省人化アプリケーションの対応も容易。
NC tilting rotary table with BallDrive system. Easy to accommodate automation and manpower-saving applications.
采用了BallDrive system的NC五轴转台。对应多种自动化·省人化应用。

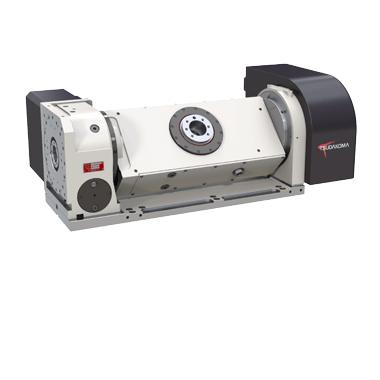

Spacious Model
ツダコマのベーシックモデルTWAシリーズの回転軸の振り回し径を拡大したモデルTWSシリーズ。
アルミのフランジ状ワークやケーシングなど大径かつ軽量ワークの加工にお勧め。
TWS series is a version of our basic TWA series with an enlarged swing diameter of the rotary axis.
Recommended for machining large-diameter, lightweight workpieces such as aluminum flanged workpieces and casings.
TWS系列扩大了基本规格TWA系列回转轴的旋转范围。
推荐加工铝制法兰形状或者壳体等大直径·轻质工件。

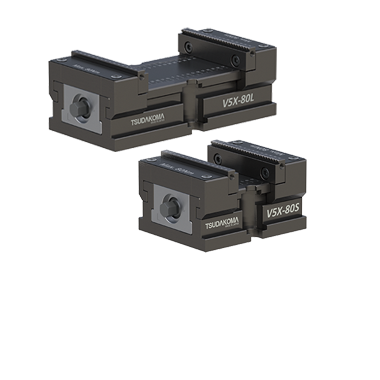

5-axis Machine Vise
様々な5軸加工シーンで活躍が可能な高精度・高品質を実現したセンタリングバイス。
Centering vise with high accuracy and high quality that can be used in various 5-axis machining scenarios.
在五轴加工场景中可实现高精度·高品质加工的自定心虎钳。

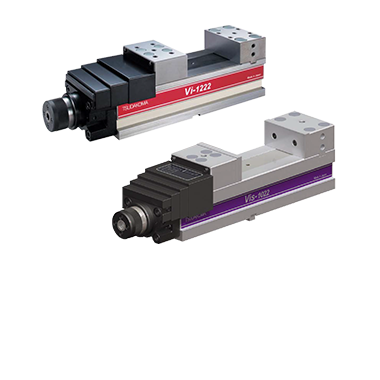

Machine Vise
ツダコマならではの、圧倒的な高剛性・高精度!マシニングセンタに最適なメカ増力マシンバイス。
TSUDAKOMA offers overwhelmingly high rigidity and high precision!
Mechanical Force-multiplier Machine Vises ideal for Machining Centers.
津田驹精密虎钳标志性的高刚性·高强度。最适合加工中心搭载的机械增力虎钳。
