BallDrive NC Rotary Table
RBS-160R
"RBS series" Tsudakoma uniquely developed 'BallDrive' realizes no backlash and extremely small aging deterioration.
Clamp-less machining because of "BallDrive" high rigidity can minimize cycle time. Indexing speed is two times faster than conventional model.
Features
- High Speed Indexing
- No backlash, High rigidity
- Save energy by high transfer efficiency
- Extremely small aging deterioration
- Adopt high response clamp mechanism (newly-developed)
Application
- High precision parts machining
- Complex-shape parts like Turbine-blade by high efficiency machining
Specifications
Specifications | Unit | RBS-160R |
---|---|---|
Spindle diameter | mm | ø100 |
Table diameter | mm | ø160 or ø200 (option) |
Center height | mm | 160 |

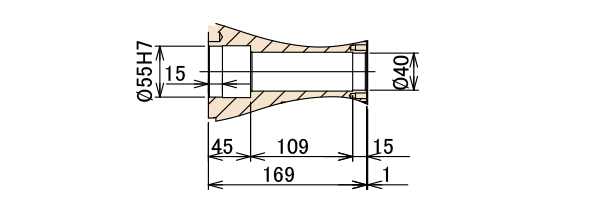

Center bore | ||
・Nose diameter | mm | ø55H7 x 45 |
・Through-bore | mm | ø40 |
Table T-slot width | mm | 12H8 |
Guide block width | mm | 14h7 |
Servo motors (For Fanuc) | αiS4 | |
Inertia converted into motor shaft | x10-3kg・m2 | 0.19 |
Net weight | kg | 60 |
Speed reduction ratio | 1/36 | |
Table max. rpm | min-1 | 83.3 |
(Motor rpm: 3,000min-1) | ||
Indexing accuracy (the sum) |
arc sec | 15 |
Repeatability | arc sec | 4 |
Clamp system | Pneumatic | |
Clamp torque/pneumatic pressure 0.49MPa | N・m | 250 |
Allowable work weight | ||
・Vertical setting ( ) : with tailstock | kg | 100(200) |
・Horizontal setting | kg | 200 |

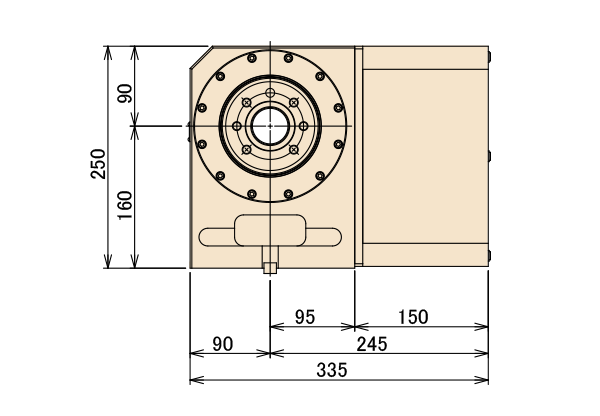

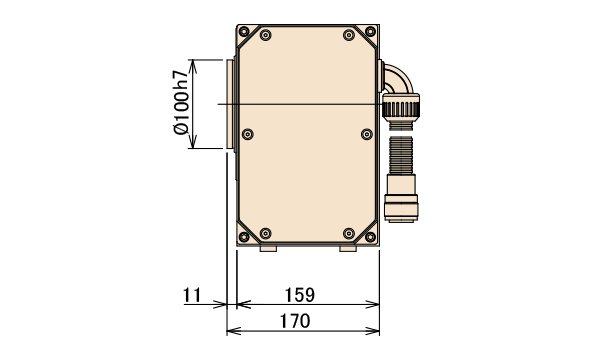

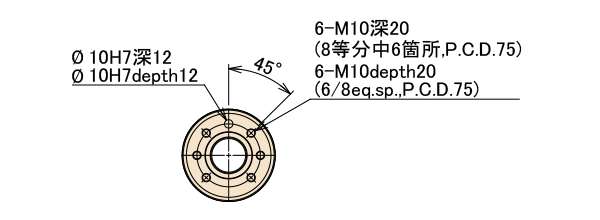

Dimensions
*Other sizes, RBS-250/320 is available. Click here if you are interested in.
