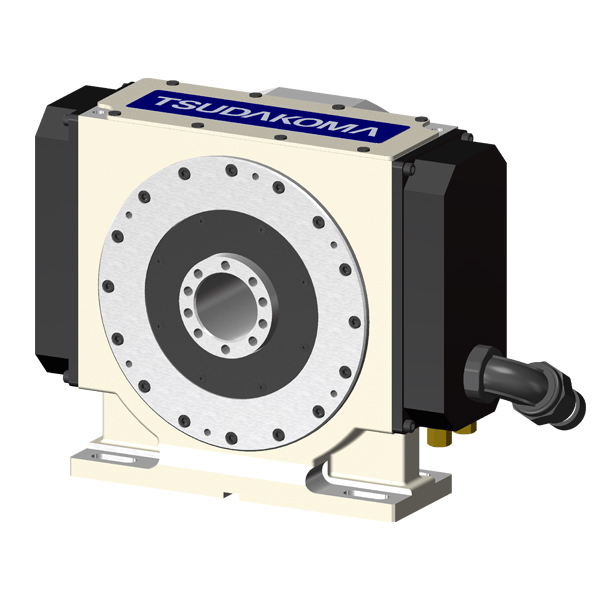

Direct Drive Smart Slim NC Rotary table

RDS-200 (SmartDD)

Ultra slim body size creates wider machining area and it provides smart solution for your business.

Features

  • Maximum speed 300min-1
  • Thinness 164mm, ultra slim and smart design
  • The only DD table which can be retrofitted
  • Great compatibility with the same NC devices
  • Compact Rotary Joint is available

Application

  • Mass produced small parts machining
  • For Compact machining Center

Specifications

Specifications Unit RDS-200
Spindle diameter mm ø83
Center height mm 160
Center bore
・Nose diameter mm ø55H7
・Through-bore mm ø45
Servo motors   Tsudakoma Developed
Net weight kg 65
Speed reduction ratio   1/1
Table max. rpm min-1 300
Indexing accuracy
(the sum)		 arc sec 20*
Repeatability arc sec 4
Clamp system   Pneumatic
Clamp torque/pneumatic pressure 0.49MPa N・m 600
Allowable work weight kg 100

*Pitch error correction activated.

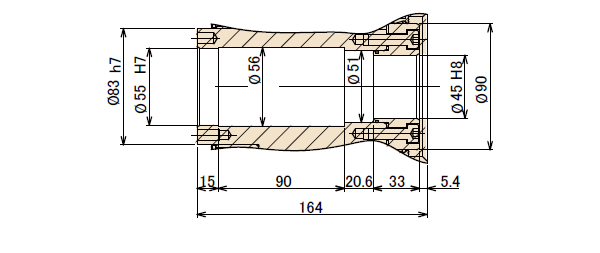

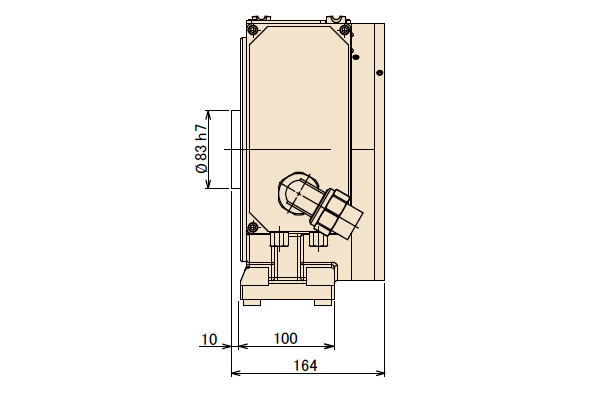

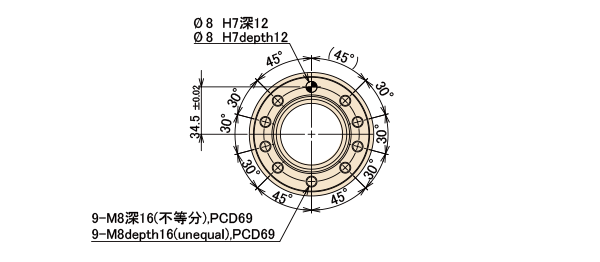

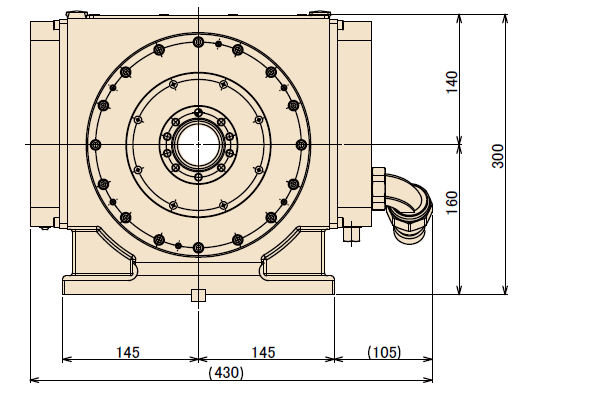

Dimensions
