BallDrive NC Tilting Rotary table
TBS-160
Followed by "RBS type" Tsudakoma introduces BallDrive NC tilting table "TBS type".
It realizes no backlash and extremely small aging deterioration.
Clamp-less machining because of "BallDrive" high rigidity can minimize cycle time.
Features
- High Speed Indexing
- No backlash, High rigidity
- Save energy by high transfer efficiency
- Extremely small aging deterioration
- Adopt high response clamp mechanism (newly-developed)
- Space saving
Application
- High precision parts machining
- Complex-shape parts like Turbine-blade by high efficiency machining
- 5-axis complex machining
- For electric components like smart phone

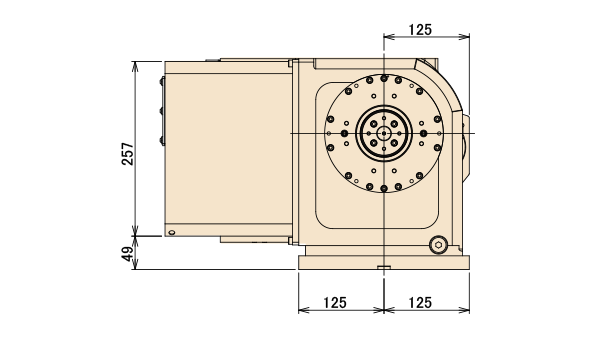

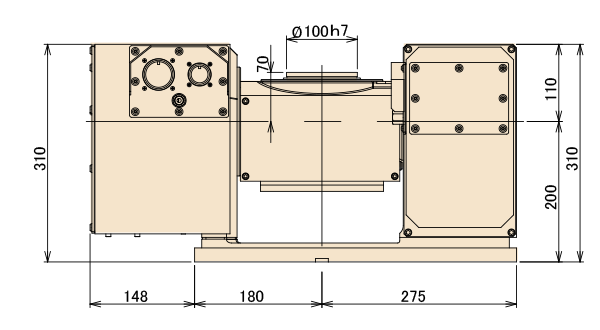

Specifications
| Specifications | Unit | TBS-160 | |
|---|---|---|---|
| Rotary axis | Tilting axis | ||
| Tilting Range | -30° to +110° | ||
| Spindle diameter | mm | Ø100 | |
| Table height at 0° position | mm | 270 | |
| Center height at 90° position | mm | 200 | |

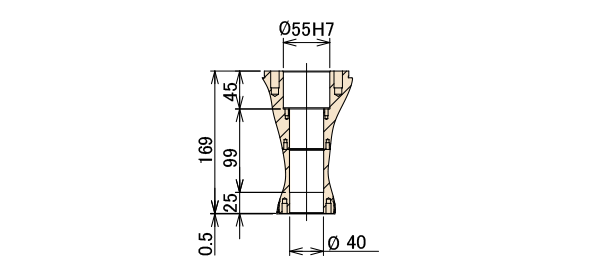

| Center bore | |||
| ・Nose diameter | mm | Ø55H7 | |
| ・Through-bore | mm | Ø40H8 | |
| Servo motors (For Fanuc) | αiS4 | αiS4 | |
| Inertia converted into motor shaft | x10-3kg・m2 | 0.15 | 0.16 |
| Net weight | kg | 160 | |
| Speed reduction ratio | 1/60 | 1/60 | |
| Table max. rpm | min-1 | 50 | 50 |
| (Motor rpm: 3,000min-1) | |||
| Indexing accuracy (the sum) |
arc sec | 20 | - |
| Repeatability | arc sec | 4 | - |
| Tilting accuracy Tilt 0° to 90° | arc sec | - | 40 |
| Tilting repeatability | arc sec | - | 4 |
| Clamp system | pneumatic | ||
| Clamp torque/pneumatic pressure 0.49MPa | N・ｍ | 250 | 250 |
| Allowable work weight | kg | 40 | |
