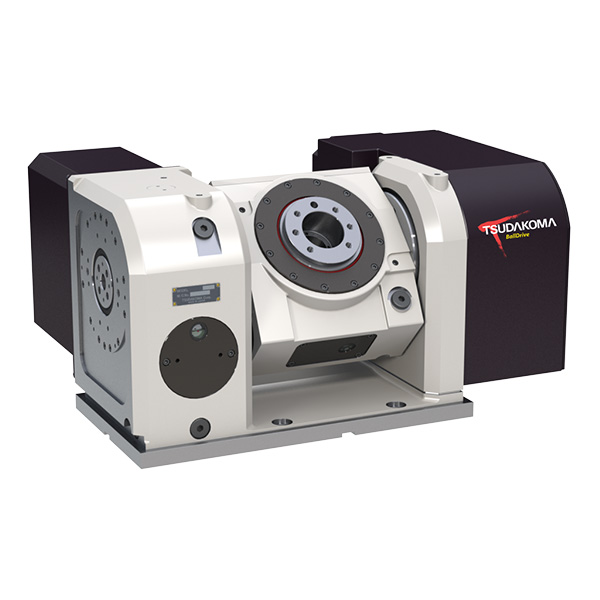

BallDrive NC Tilting Rotary table
TBS-160
The latest technology, tilting rotary tables with BallDrive are joined in our line-up to provide perfect performance in 5-axis machining and to contribute to improve productivity.
Features
- High Speed Indexing
- No backlash, High rigidity
- Save energy by high transfer efficiency
- Extremely small aging deterioration
- Adopt high response clamp mechanism (newly-developed)
- Space saving
Application
- High precision parts machining
- 5-axis complex machining
- For electric components like smart phone

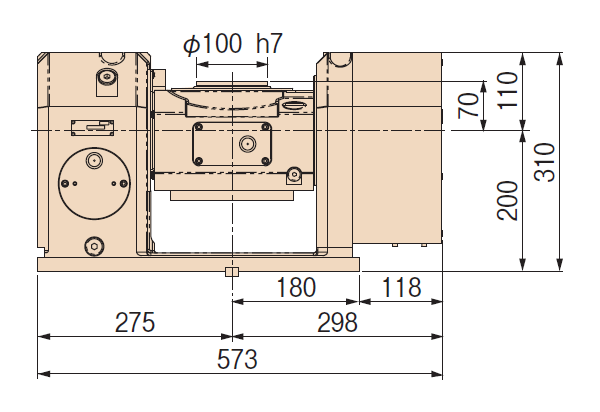

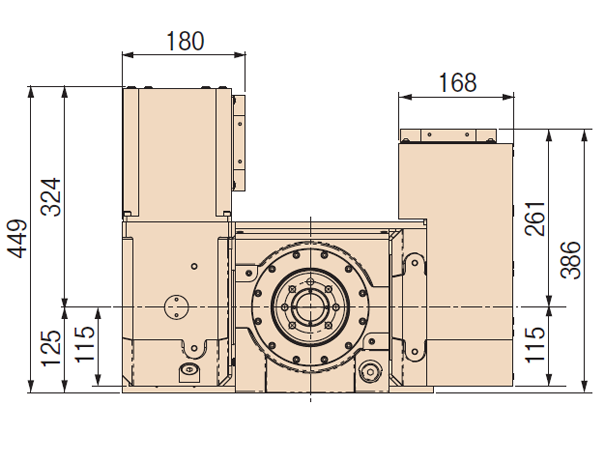

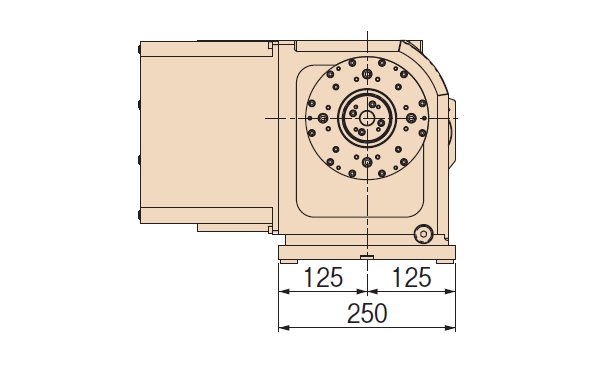

Specifications

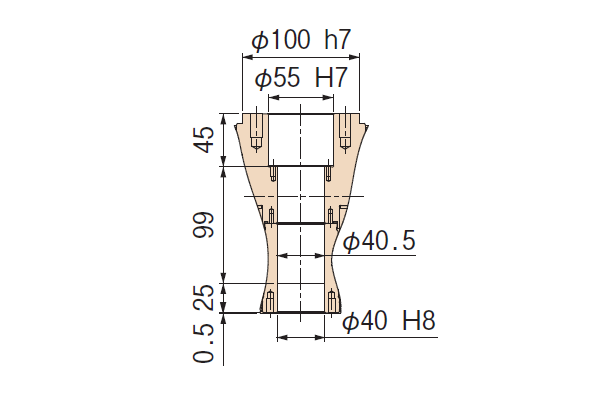

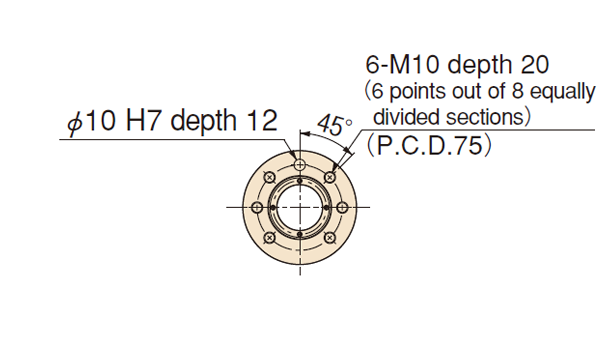

| Specifications | Unit | TBS-160 | |
|---|---|---|---|
| Rotary axis | Tilting axis | ||
| Tilting Range | -30° to +110° | ||
| Spindle diameter | mm | Ø100 | |
| Table height at 0° position | mm | 270 | |
| Center height at 90° position | mm | 200 | |
| Center bore | |||
| ・Nose diameter | mm | Ø55H7 | |
| ・Through-bore | mm | Ø40 | |
| Servo motors (For Fanuc) | αiS4 | αiS4 | |
| Inertia converted into motor shaft | x10-3kg・m2 | 0.15 | 0.16 |
| Net weight | kg | 160 | |
| Speed reduction ratio | 1/60 | 1/60 | |
| Table max. rpm | min-1 | 50 | 50 |
| (Motor rpm: 3,000min-1) | |||
| Indexing accuracy (the sum) |
arc sec | 20 | - |
| Tilting accuracy Tilt 0° to 90° | arc sec | - | 30 |
| Clamp system | pneumatic | ||
| Clamp torque ( ) : High Clamp Torque model/pneumatic pressure 0.49MPa | N・ｍ | 250(500) | 250(500) |
| Allowable work weight | kg | 40 | |
