NC Rotary Table
RWA-160L
The RWE/RWA series, an improvement on the best-selling, has remarkably improved cost efficiency due to its high-speed operation for use in drill and tapping machines.
Features
- Excellent performance
- Fulfilling optional devices
- Adopt high response clamp mechanism (Newly-developed)
- Economic model RWE series is available
Application
- Mass produced small parts machining
- For Compact machining Center
Specifications
Specifications | Unit | RWA-160L |
---|---|---|

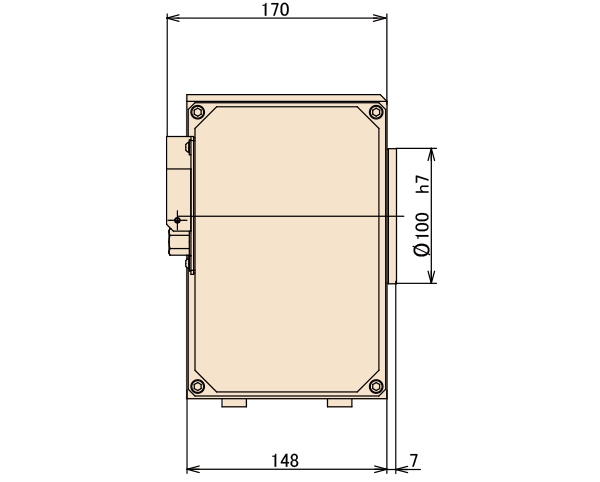

Spindle diameter | mm | ø100 |
Table diameter(option) | mm | ø160 or ø200 |

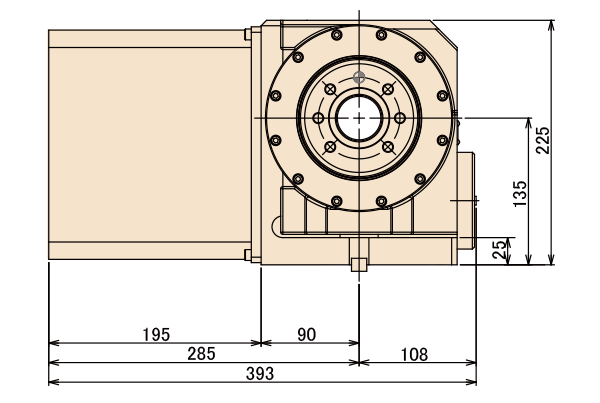

Center height | mm | 135 |

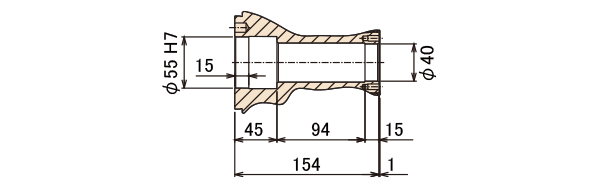

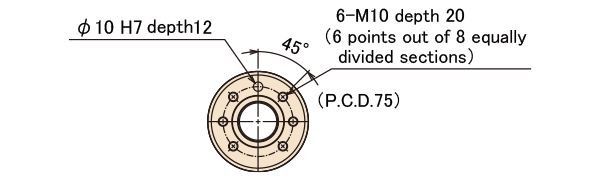

Center bore | ||
・Nose diameter | mm | ø55H7 |
・Through-bore | mm | ø40 |
Table T-slot width | mm | 12H8 |
Guide block width | mm | 14h7 |
Servo motors (For Fanuc) | αiS2 | |
Inertia converted into motor shaft | x10-3kg・m2 | 0.09 |
Net weight | kg | 40 |
Speed reduction ratio | 1/72 | |
Table max. rpm | min-1 (Motor rpm: 3,000min-1) |
41.6 |
Indexing accuracy (the sum) |
arc sec | 25 |
Clamp system | pneumatic | |
Clamp torque/pneumatic pressure 0.49MPa | N・m | 500 |
Allowable work weight | ||
・Vertical setting ( ) : with tailstock | kg | 100(200) |
・Horizontal setting | kg | 200 |
