Products TFL Automated Fiber Lay-up Machine

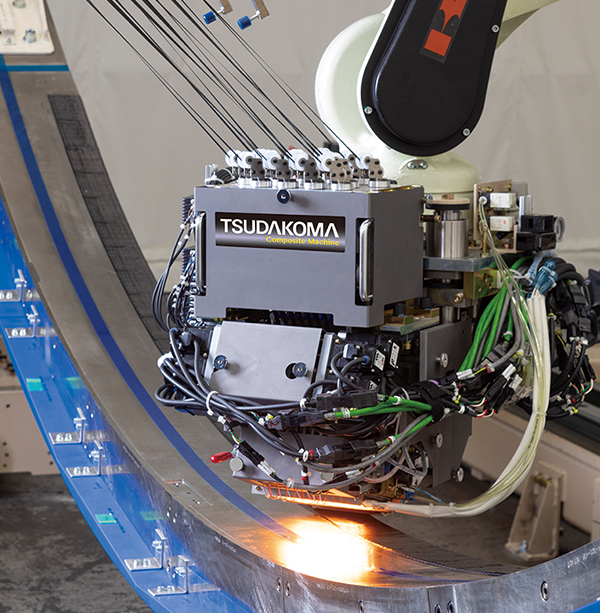

Robotic Automated Fiber Placement (AFP) from TSUDAKOMA, which can accurately lay narrow slit tapes on complex shapes.

Please click the following machine picture for the details.

Product introduction video

High productivity has been achieved by individual control of multiple slit tapes. At the same time, the compact head allows it to reach narrower spaces. You can apply it to complex shapes of work-pieces such as channel forms, which were difficult to produce with a machine.

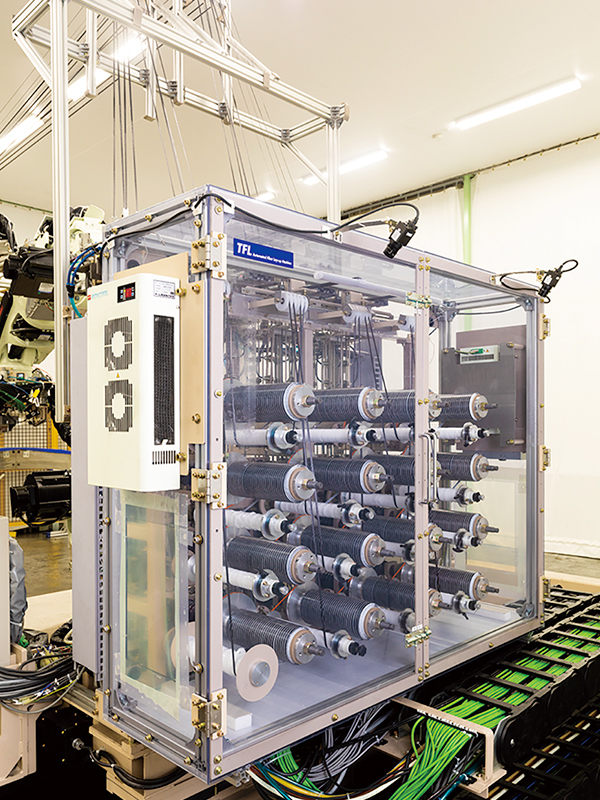

TFL uses thermoset prepreg slit tape. 16 spools can be installed in the creel box as standard.

A traveling axis for Robot and a positioner can be combined in this system.

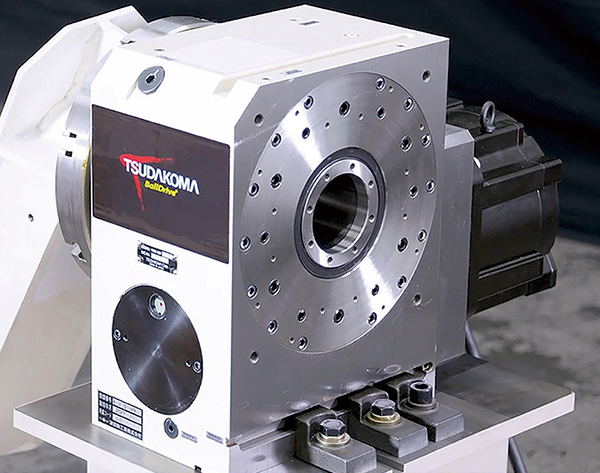

Click here to learn more about BallDrive® product.

This information is based on results obtained from a project commissioned by the New Energy and Industrial Technology Development Organization (NEDO).
