Foundry (Matto Plant)

Products・Facilities

Products

Sound casting construction, high-precision dimension, and well-formed casting surface

With our technology reinforced by rich history and experience, our casting products manufactured by modern and managed facilities achieve sound casting construction without gross porosity, high-precision dimension and well-formed casting surface. We are confident that these qualities improve the value of our customer's product.

Regular cast iron FC200 Parts for textile machinery and industrial machinery
Luxury cast iron FC300 Parts for textile machinery and machine tool attachments; parts for industrial machinery
Ductile cast iron FCD450 EFCD600 EFCD700 Parts for textile machinery and machine tool attachments; parts for industrial machinery
Castings for textile machinery and preparation machinery
Castings for machine tool attachments
Castings for various industrial machinery

Facilities

Eco-friendly facilities

TSUDAKOMA aims at establishing a clean environment both inside and outside the plant. Sensitive to the local community, we reduce industrial waste and promote recycling.

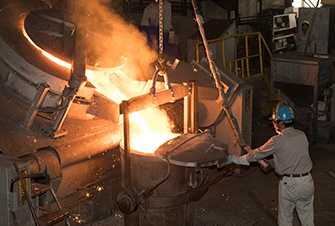

Melting equipment High-frequency induction furnace
2t 　 1,500kW x 3 sets

Low-frequency induction furnace
5t 　 1,200kW x 2 sets
8t 　 1,500kW x 1 sets

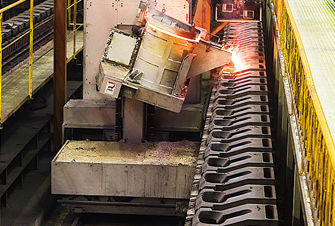

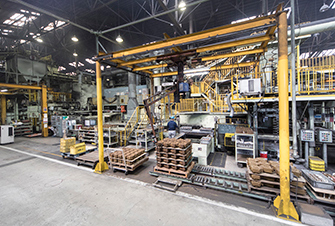

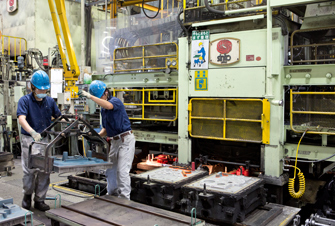

Molding equipment Large static pressure molding machine JPS line
Size of flask ： 1,300 x 1,400 x 200/290
Molding cycle ： 200"
    1 unit
Mid-size static pressure molding machine APS line
Size of flask ： 625 x 765 x 200 / 200
Molding cycle ： 45"
    1 unit
Molding machine for small casting FCMX line
Size of flask ： 508 x 406 x 200 / 200
Molding cycle ： 18"
    2 unit

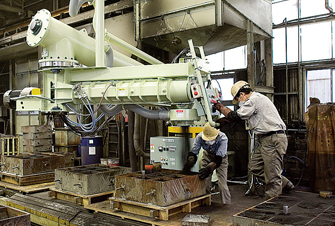

Furan sand molding machine Self-hardening line
Size of flask ： Max x 500kg
Molding cycle ： 6"
    1 unit
Sand processing Sand mill MSK60P
Capacity ： 60t / H
    1 unit

Sand mill MSK45P
Capacity ： 45t / H
    1 unit

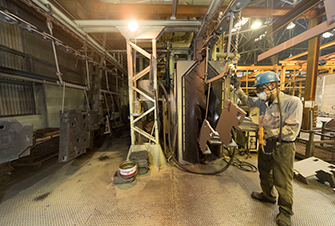

Shot blasting equipment Hanger-type blasting machine
1 unit
Table-type blasting machine
1 unit
Drum-type blasting machine
1 unit
Swing-type blasting machine
1 unit

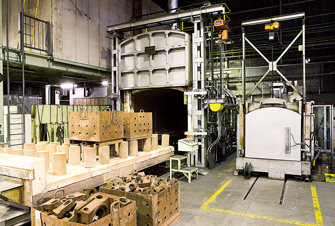

Heat treatment equipment Gas annealing furnace
Capacity ： 6t/batch
    1 unit

Electric furnace
Capacity ： 1t/batch
    1 unit

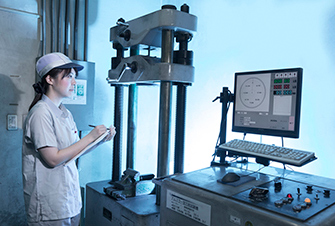

Testing machines Amsler universal testing machine
1 unit

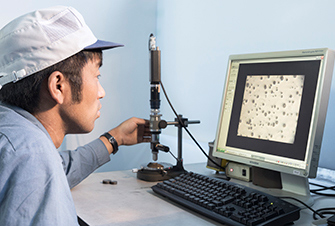

Metallurgical microscope
2 units

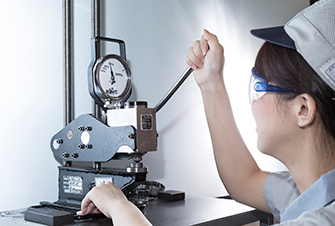

Brinell hardness tester
2 units

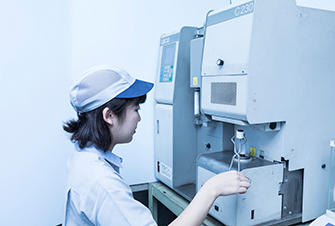

Carbon analyzer
1 unit

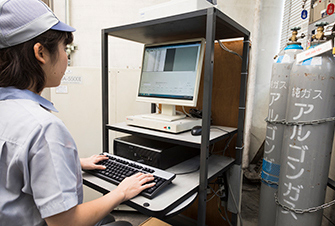

Optical emission spectrometer
1 unit
  Carbon silicon analyzer
2 units
  Ultrasonic flaw detector
1 unit
  Spheroidization rate detector
1 unit
Environmental equipment   Dust collector
38 units
  Central cleaning equipment
70 inlets installed
1 unit
Other items   Truck scale
Capacity ： 30 tons
    1 unit

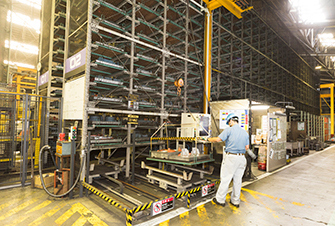

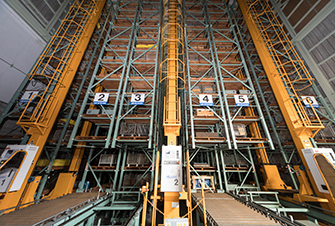

Automated product warehouse
Capacity ： 828 racks
    3 units linked
Pattern storage rack
Capacity ： 830 racks
    1 unit

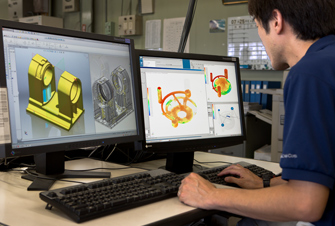

3D solidification analysis system
1 set

Contact Us

For catalogs, drawings, and any inquiries, contact us by contact form.
