BallDrive® NC Rotary Tables

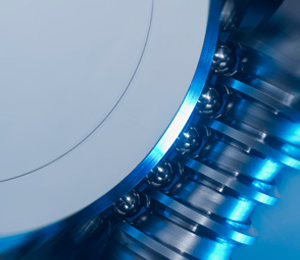

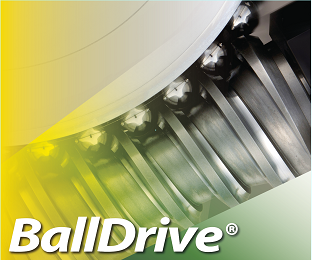

TSUDAKOMA Original Next-Generation Drive Mechanism 'BallDrive®'

The perfect drive system 'BallDrive®' realizes the highest accuracy level and no-backlash.
No-clamp machining at a light load with no-backlash, high speed and high rigidity.
Shorten cycle time to improve your productivity by zeroizing of clamp/unclamp time and more than double indexing speed. *
* In- house comparison

Cycle time reduction
Twice as fast as the current model
Clampless machining

Power saving
High transfer efficiency with a ball rolling system

No backlash
High accuracy machining without backlash

High rigidity
Stable positioning using a powerful clamp

Maintenance free
Extremely small aged deterioration
Original precision is maintained

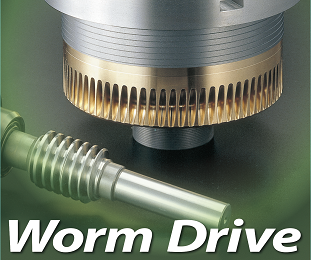

Worm Drive NC Rotary Tables

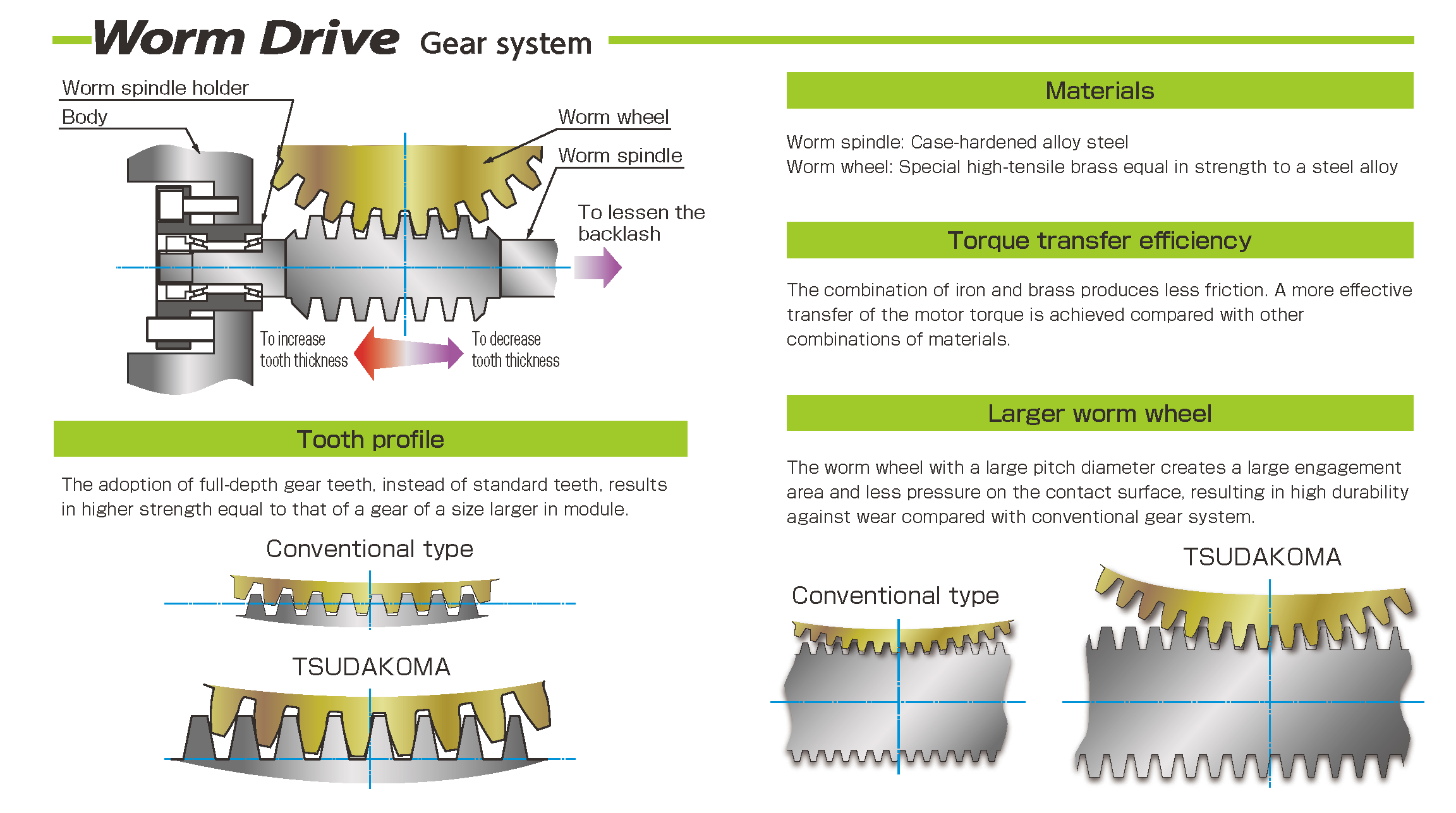

Ideal gear system with excellent balance of smoothness, power and durability

TSUDAKOMA's specially designed double-lead worm gears with full-depth gear teeth
The setting of the lead amount on this gear system is different depending on the rotating direction of the worm wheel and worm spindle. By moving the worm spindle axially, the tooth engagement can be changed successively. As the backlash between the worm wheel and the worm spindle can be adjusted while keeping them in their proper positions, the ideal tooth engagement is maintained.

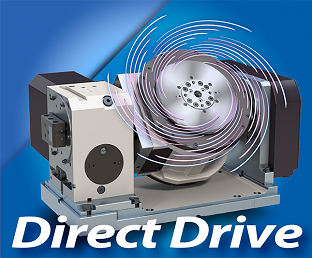

Direct Drive NC Rotary Tables

Enables High-Speed Indexing and High-Precision Machining!

  • No physical deceleration mechanism and no backlash
  • Resistant to aging and wear
  • Eco friendly design without the use of lubricating oil
  • Slim design achievable
  • Machine Vises

    Mechanical force-multiplier system with easy operation

    The center rod moves by turning a handle. The pushing force is multiplied through small and large rollers, and is transmitted to the movable jaw to achieve stable and strong clamping torque.
