TSUDAKOMA

SYSTEM S·Plus

Air Usage Efficiency

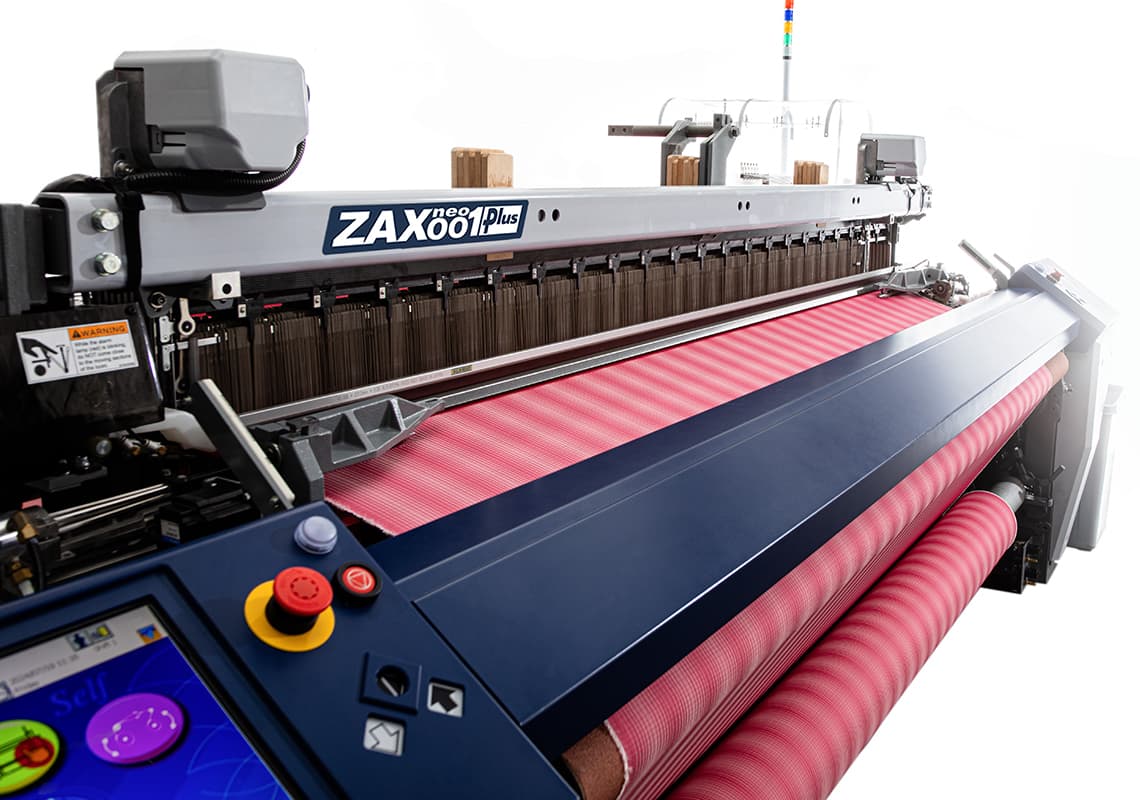

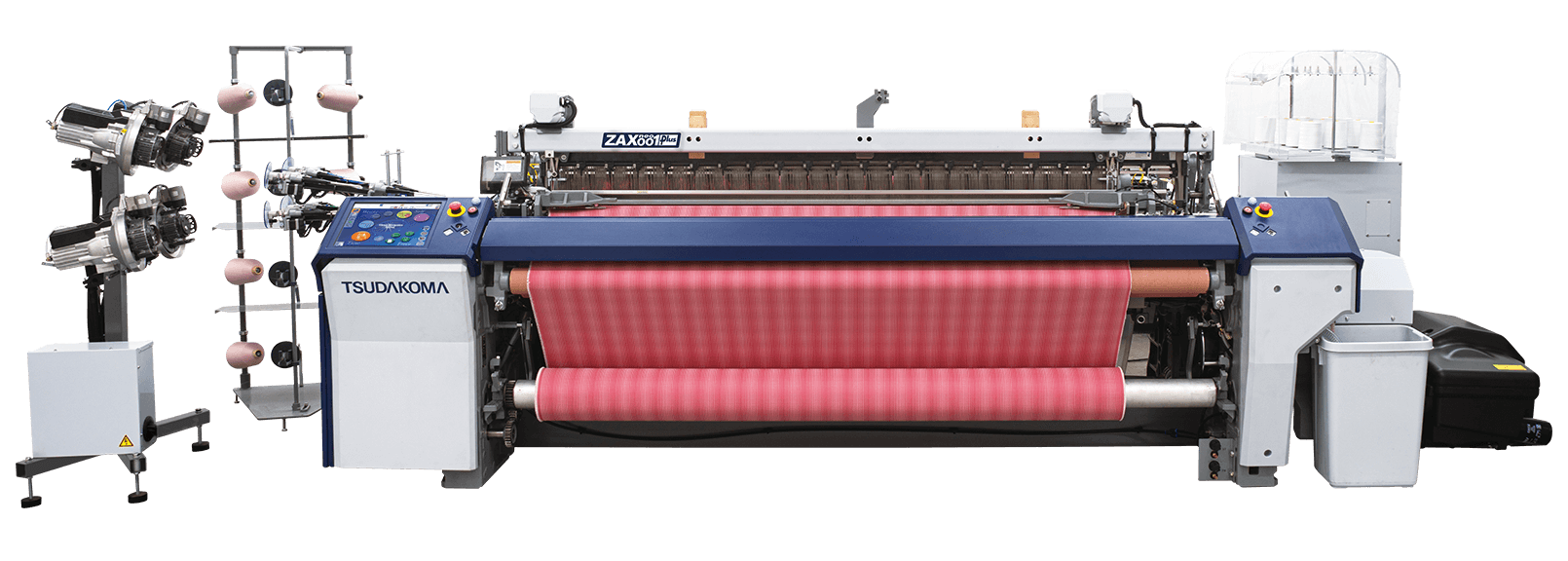

The ZAX001neo Plus is equipped with the SYSTEM S·Plus that integrates our newly developed technology of air saving and lower pressure.
The new system enables air consumption reduction and reduction in air pressure for weft insertion.

• AJC-S⁺Plus Auto Jet Control
• New sub-nozzles with shortened pitch
• Pressure loss reduction system
• Sub-nozzles positioned extremely close to the reed

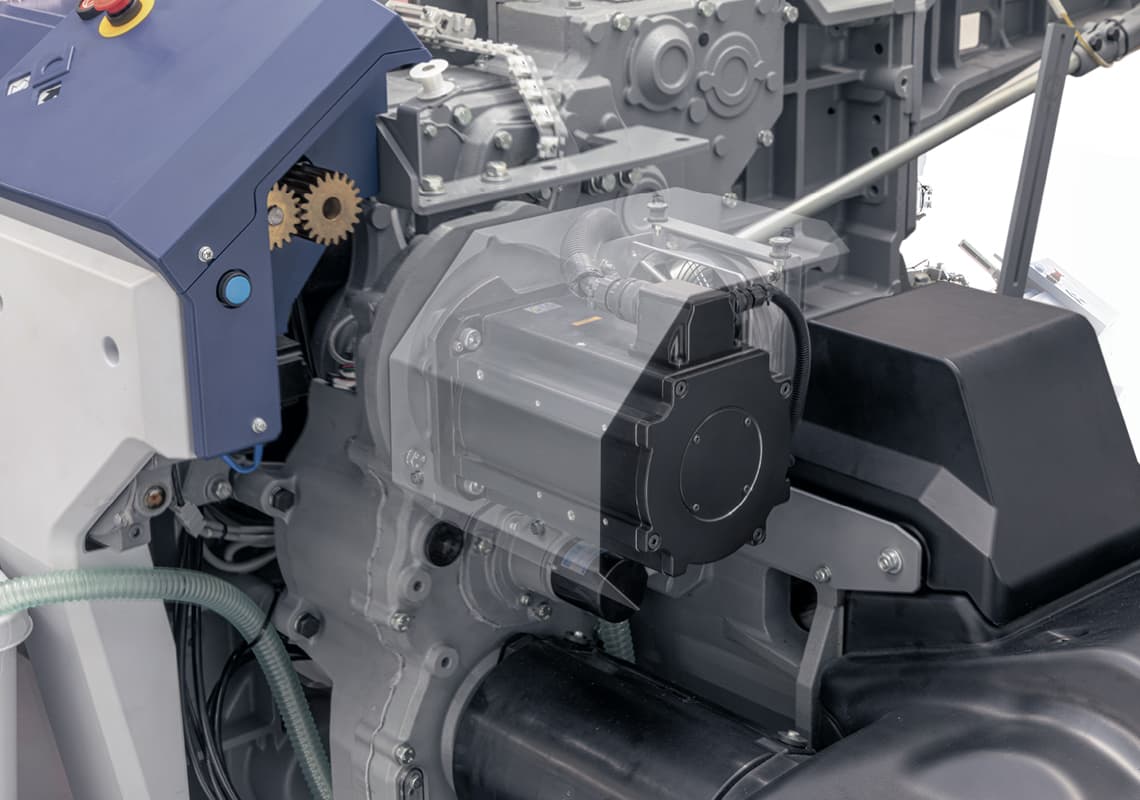

SYSTEM EOS

Driving Energy Efficiency

With the keywords Efficiency, Optimization, and Saving Energy, the efficiency of the loom power usage is improved.
A reduction in the loom's power consumption is achieved.

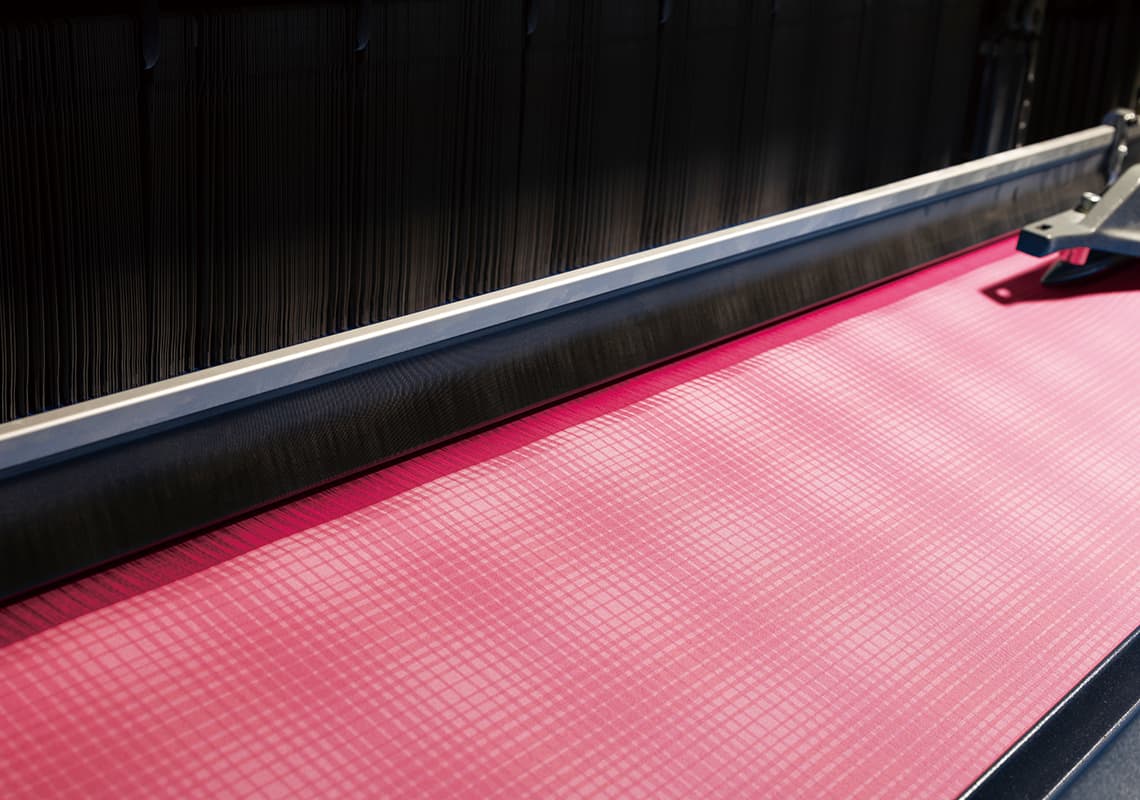

Cam Beating System

A cam beating system suitable for jet looms.
It supports customers with diverse requirements and is the best choice for expanding weaving possibilities.

• A longer weft insertion timing leads to high versatility and upgraded weaving performance.
• Dedicated cam beating achieves high quality, air saving, and pressure reduction.
• Positioning the 1^st heald frame closer to the beating point enables high speed weaving and improves durability of loom accessories.
• A synergy of cam beating and TAP realizes low vibration.

Neo Weft Insertion System

Fruits of weft insertion technology, the outcome of efforts to pursue energy savings and high speed performance.
Nozzles, valves, and control technology, all of which are the basis of the air jet loom, are optimized.
A greatest masterpiece of user-friendliness with special consideration for easier setting operation and adjustment.

• Neo Valve System

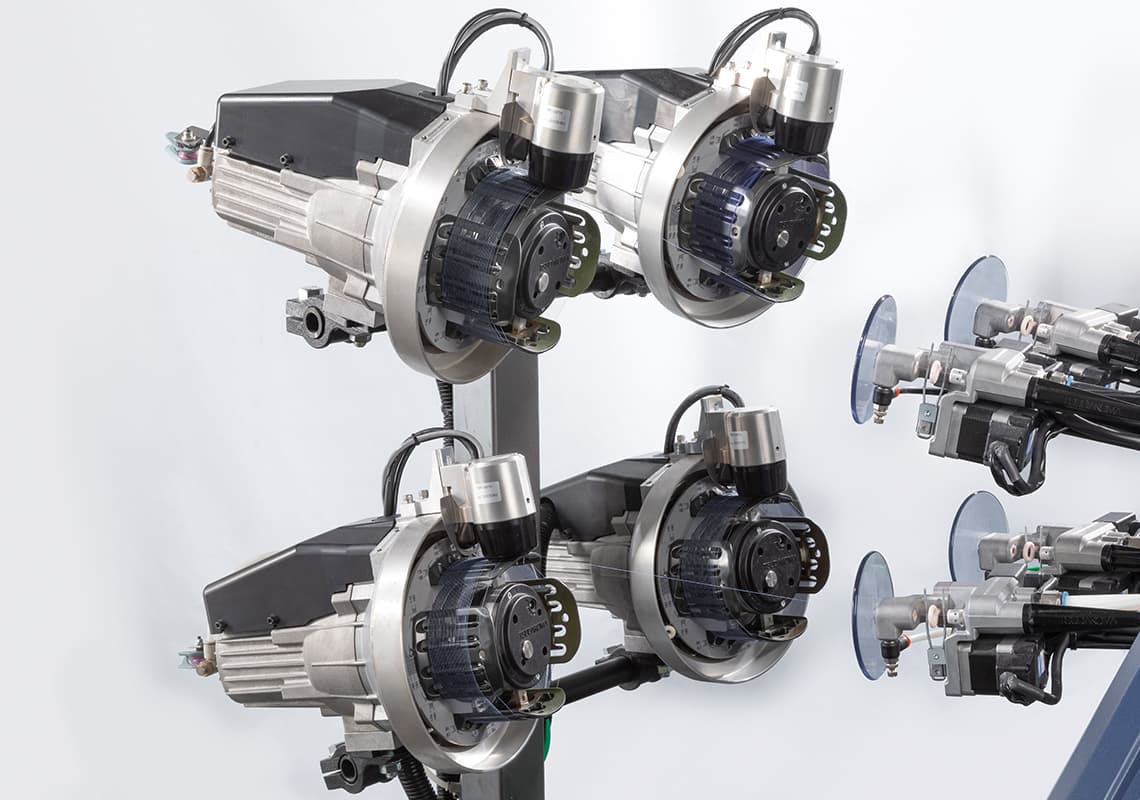

• FDP-A IV Electronic Free Drum Pooling system

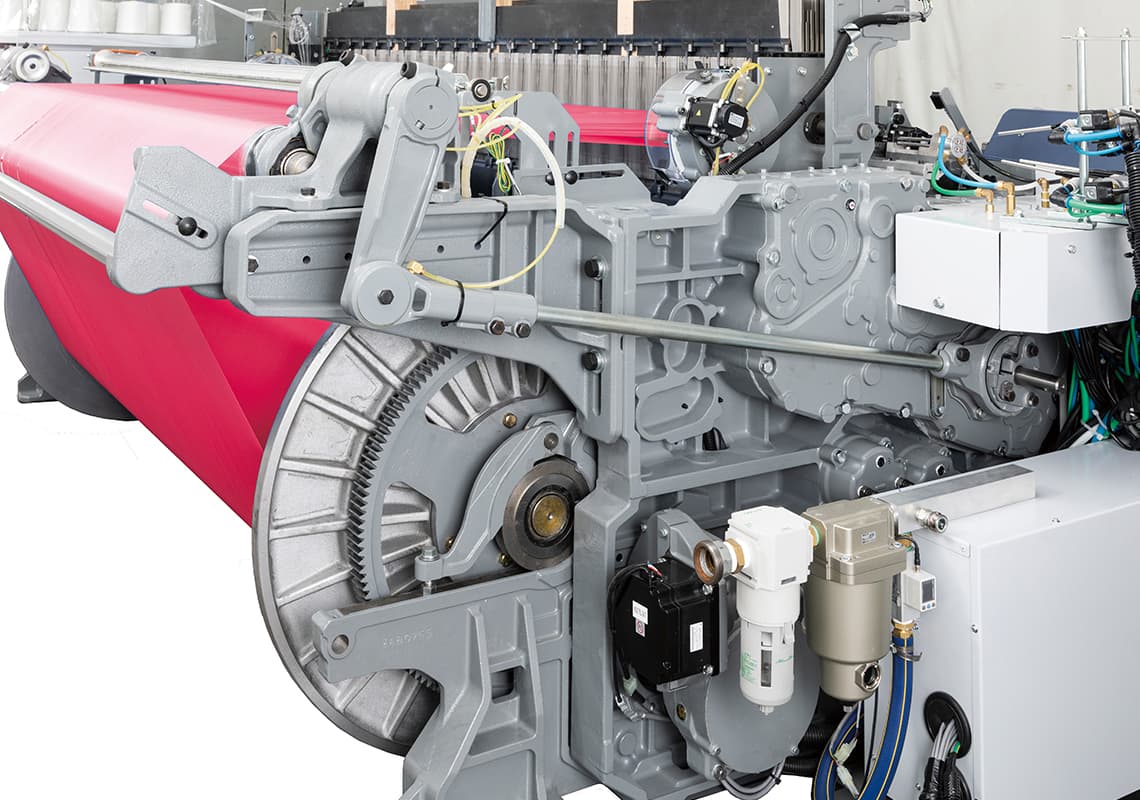

TAP Tsudakoma Advanced Platform

Existing looms have been repeatedly reinforced to support high speed. Now, TSUDAKOMA completely switched the method. We developed a new ideal loom frame. Highly recessed loom components, instead of flat or box-shaped, are the advanced platform. Both high robustness and lightweight moving components are achieved while ensuring reliable power transmission.

• Specially designed frame structure
• Direct gear drive
• Lightweight and well-balanced rocking shaft
