TSUDAKOMA

SYSTEM S·Plus

Air Usage Efficiency

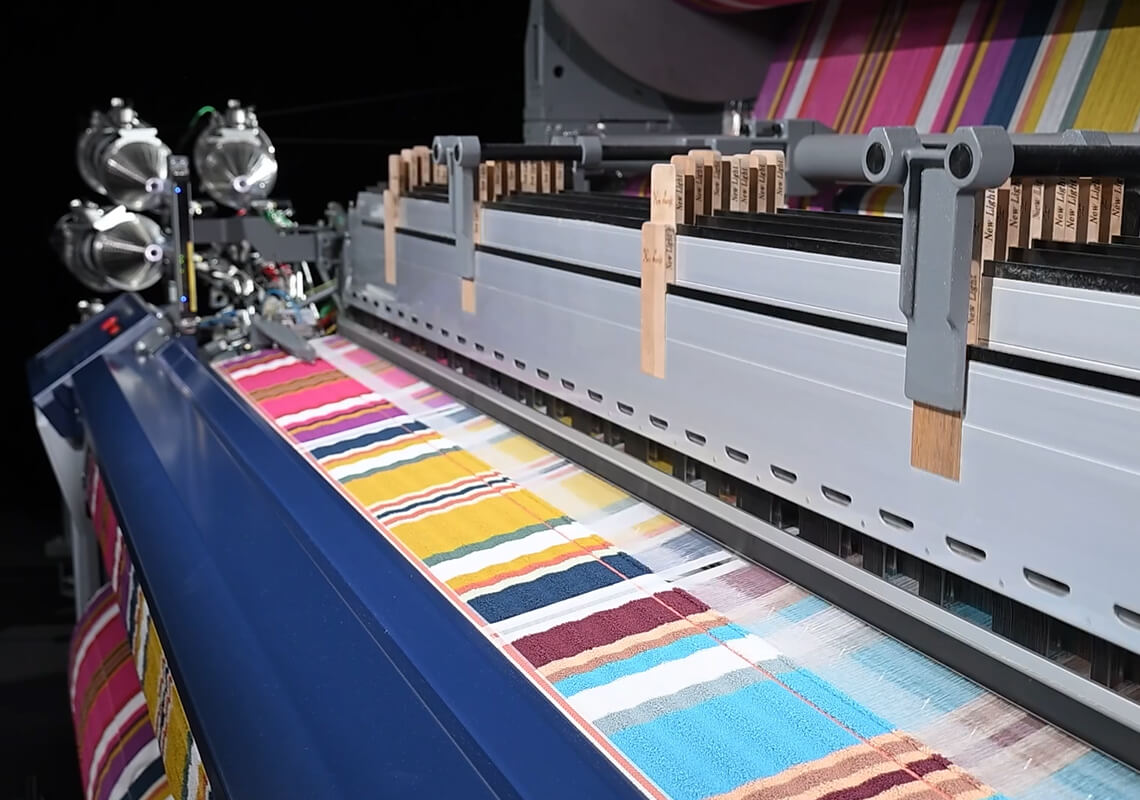

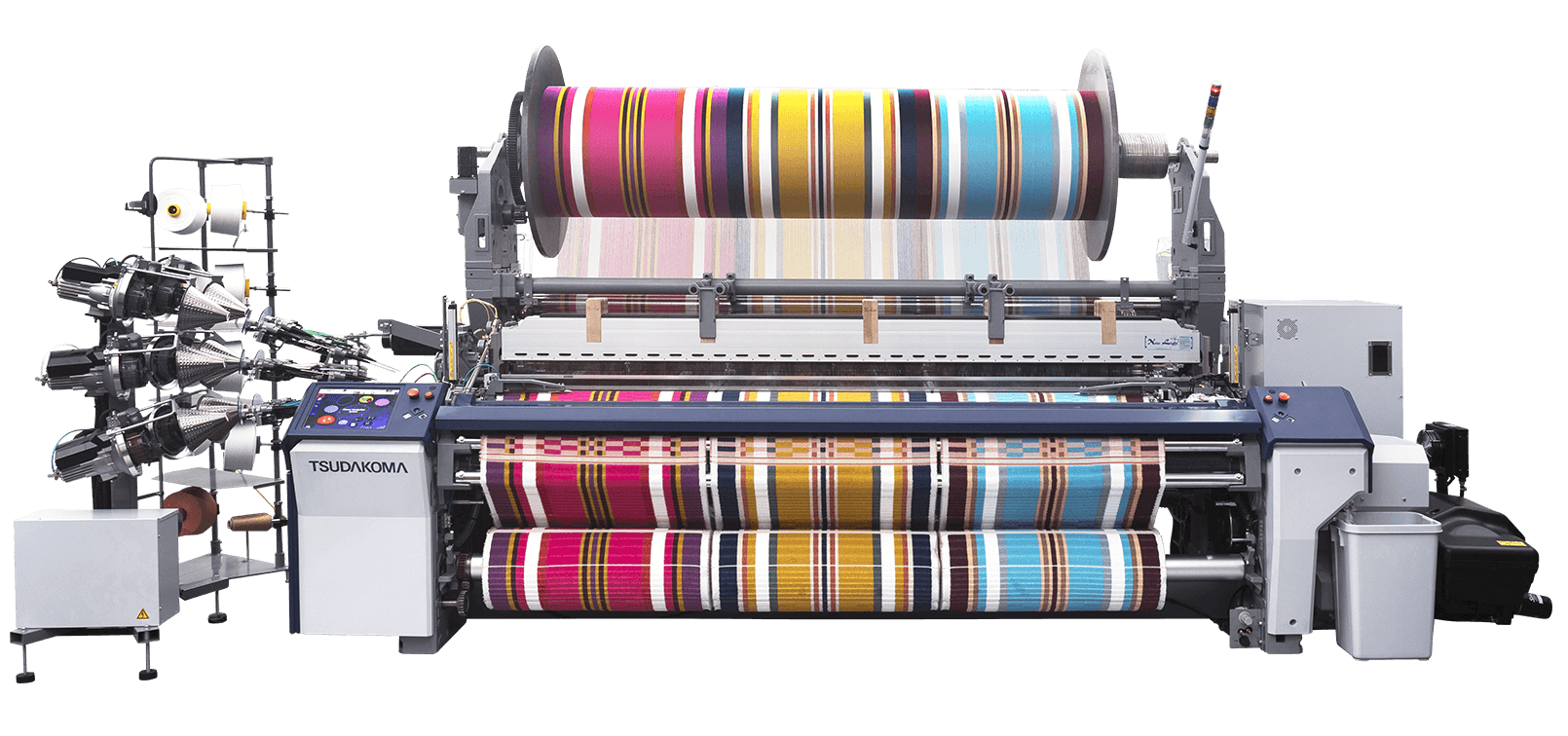

The ZAX001neo Terry is equipped with the SYSTEM S·Plus that integrates our newly developed technology of air saving and lower pressure.
The new system enables air consumption reduction and reduction in air pressure for weft insertion.

• AJC-S⁺Plus Auto Jet Control
• New sub-nozzles with shortened pitch
• Pressure loss reduction system

SYSTEM EOS

Driving Energy Efficiency

With the keywords Efficiency, Optimization, and Saving Energy, the efficiency of the loom power usage is improved.
A reduction in the loom's power consumption is achieved.

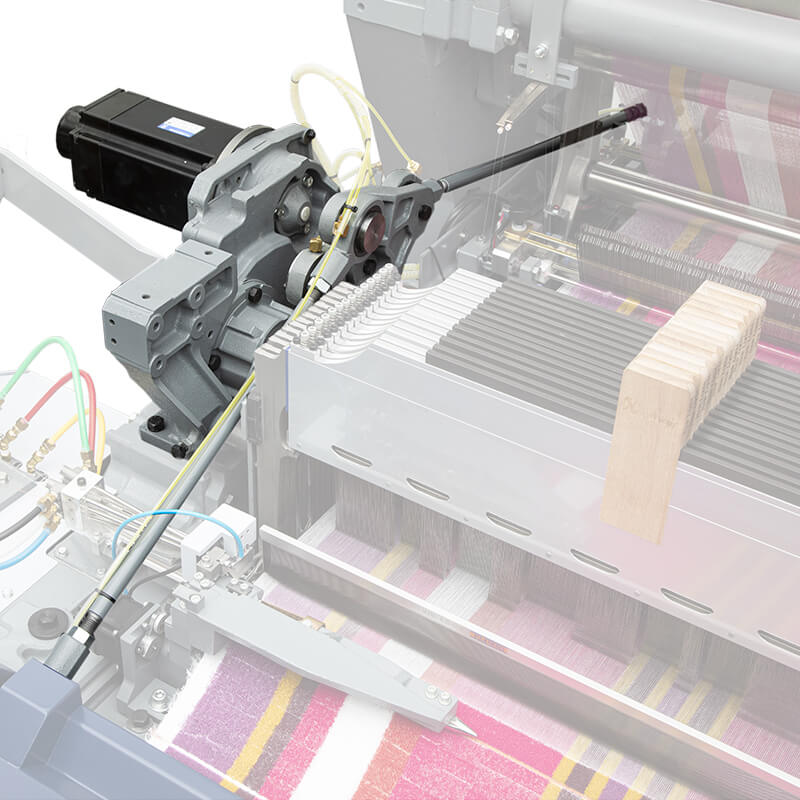

New ETS Electronic Terry System

The ETS motor, gear box, and link mechanism are optimally designed, realizing exceptional high speed performance and a superb durability.

Direct Gear Drive for Jacquard

Our original bevel gear box that is newly designed exclusively for Jacquard drive is directly connected to the direct gear drive system provided with the ZAX001neo series as standard.
Transmission efficiency is greatly improved, and further high speed and durability are realized.

TMC Terry Motion Control

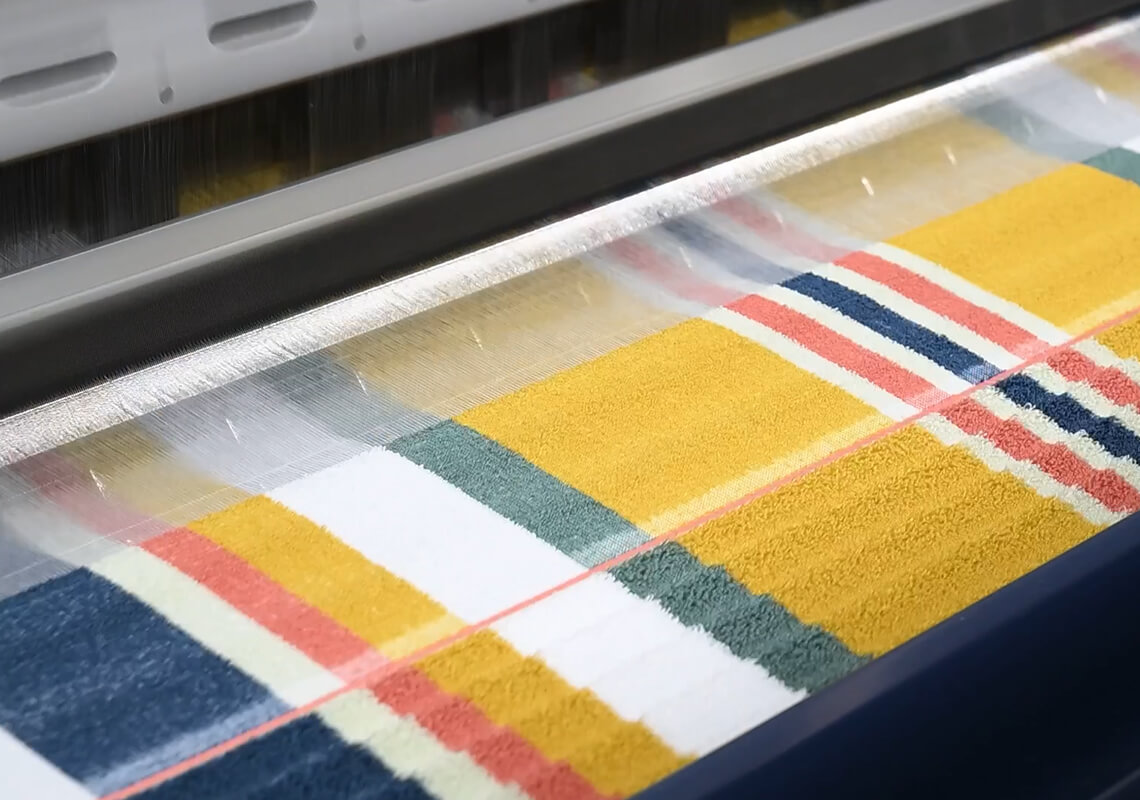

Tension fluctuation of pile yarn is accurately and optimally controlled with a servo motor.
Pile pulling is greatly reduced, and uniform and beautifully finished pile is stably produced.

Cam Beating System (Dedicated for terry weaving)

Against the cam beating for the ZAX001neo series, a cam curve that is optimized specially for terry weaving is introduced. In addition to excellent woven result, diversified performance improvements, such as air savings and reduced vibration, provide customers strong support for terry weaving.

• A longer weft insertion timing leads to high versatility and upgraded weaving performance.
• Dedicated cam beating achieves high quality, air saving, and pressure reduction.
• Positioning the 1^st heald frame closer to the beating point enables high speed weaving and improves durability of loom accessories.
